Corrosion-Resistant ACSR Wire ASTM Aluminium Conductor Steel Reinforced Cable High Tensile Strength Low Sag For Rural Electrification

Corrosion-Resistant ACSR Wire ASTM Aluminium Conductor Steel Reinforced Cable High Tensile Strength Low Sag For Rural Electrification

Thanks to the great number of combinations that can be made between the wires of aluminum and the wires of steel, the proportions can vary among them to obtain the best relation between the mechanical resistance and the current-carrying capacity for each type of application.

For a better protection in an atmosphere of extreme corrosion, Sanwu Cable recommends to use Class B or C galvanized steel core (zinc-coated). It produces a small reduction on the total mechanical resistance when using these types of galvanization. We can produce special orders if desired.

Conductor: Concentric stranded hard drawn aluminum wire

Steel Core: Galvanized steel (Zinc coated) wire, solid or concentric stranded

Specafication:

Standard:

Standards of ACSR Conductor /ACSR Cable

Our Bare conductor can meet or exceedthe item of cable international standards.

Such as:

AAC : IEC 61089, ASTM B231, BS 215 part1, DIN 48201 etc.

AAAC : IEC 61089, ASTN B399, BS EN50183, BS 3242, DIN 48201 etc.

ACSR : IEC61089, ASTM B232, BS 215 part2, DIN 48204 etc.

Aslo we accept the OEM and the new design cable as customers.

Features:

1. Low Sag Performance

• The combination of the steel core and aluminum strands ensures minimal sag, even over long distances, maintaining efficient power transmission.

2. High Conductivity

• The aluminum outer layer ensures efficient electrical conductivity, making it ideal for power transmission and distribution networks.

3. Durability in Harsh Environments

• The anti-corrosion coating on the steel core makes the cable resistant to moisture, chemicals, and salt, perfect for coastal or industrial areas.

4. Flexibility and Ease of Installation

Despite its strength, ACSR remains flexible, making it easier to install and handle during construction.

Applications:

The bare conductor AAC, AAAC, ACSR, ACAR, and Galvanized steel wire are used in overhead electrical transmission line and distribution with various voltage level.

Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AS offers optimal strength for line design. Along with slightly greater ampacity and resistance to corrosion due to the aluminum cladding of the steel core wires.

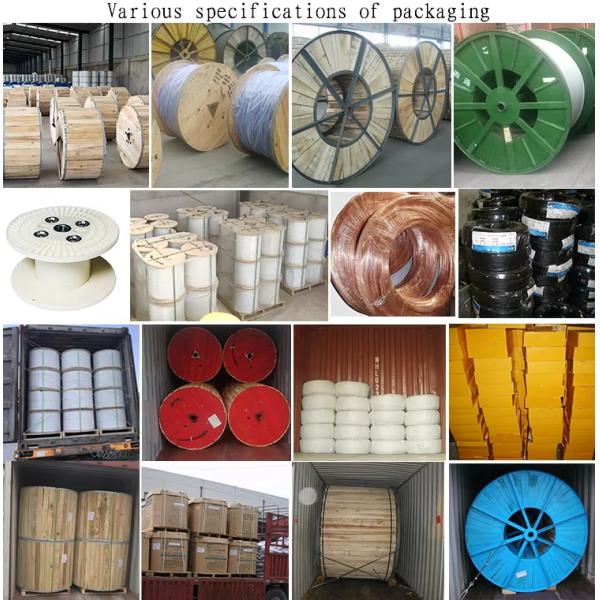

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.

Low Sag ACSR Wire

ASTM Aluminium Conductor Steel Reinforced Cable

High Tensile Strength ACSR Wire

Corrosion-Resistant ACSR Wire ASTM Aluminium Conductor Steel Reinforced Cable High Tensile Strength Low Sag For Rural Electrification Images
